DataView

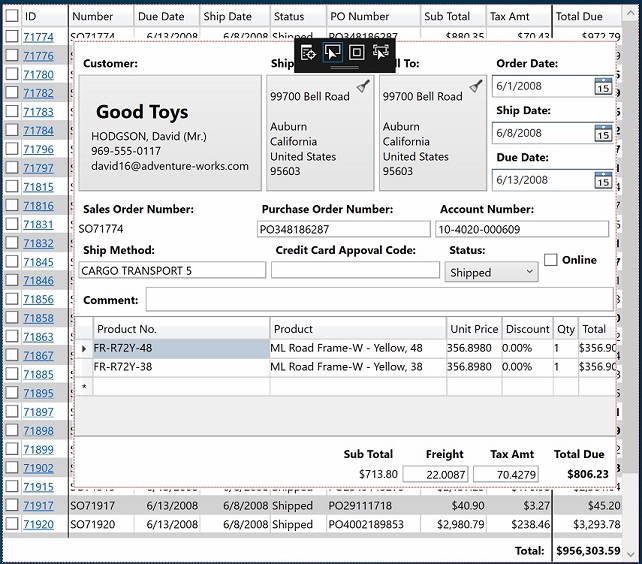

DataView represents a control that displays scalar and DataSet data, as shown in AdventureWorksLT.WpfApp sample:

Features

DataView acts as root UI container for scalar and DataSet data presentation. In addition, it implements the following command handlers:

• Asynchronously data loading state.
• Scalar data editing.
• Delete selected row(s).
• Clipboard copy/paste.

Usage

Typically, DataView is added to your XAML UI, then call Show method of your presenter class to show data to the this view.

You can also add DataView as row binding via BindToDataView, to display child DataSet as sub DataView.

Implemented Commands

Command	Input	Implementation
CancelDataLoad	Control template	Cancels data loading.
RetryDataLoad	Control template	Retries data loading.
ToggleEditScalars		Toggles scalar editing mode.
BeginEditScalars		Begins scalar editing mode.
EndEditScalars		Ends scalar editing mode.
CancelEditScalars		Cancels scalar editing mode.
Delete	Same as ApplicationCommands.Delete	Deletes selected row(s).
Copy	Same as ApplicationCommands.Copy	Copies selected row(s) to clipboard.
PasteAppend	Same as ApplicationCommands.Paste	Pastes append data from clipboard.

Customizable Services

• DataView.ICommandService: Your data presenter can implement this service to change the commands implementation of this class.
• DataView.IPasteAppendService: Your data presenter can implement this interface to verify data to be pasted, for example, retrieve lookup data for foreign key, as demonstrated in AdventureWorksLT.WpfApp sample:

• C#
• VB.Net

bool DataView.IPasteAppendService.Verify(IReadOnlyList<ColumnValueBag> data)
{
    var foreignKeys = DataSet<Product.Ref>.Create();
    for (int i = 0; i < data.Count; i++)
    {
        var valueBag = data[i];
        var productId = valueBag.ContainsKey(_.ProductID) ? valueBag[_.ProductID] : null;
        foreignKeys.AddRow((_, dataRow) =>
        {
            _.ProductID.SetValue(dataRow, productId);
        });
    }

    if (!App.Execute((db, ct) => db.LookupAsync(foreignKeys, ct), Window.GetWindow(View), out var lookup))
        return false;

    Debug.Assert(lookup.Count == data.Count);
    var product = _.Product;
    for (int i = 0; i < lookup.Count; i++)
    {
        data[i].SetValue(product.Name, lookup._.Name[i]);
        data[i].SetValue(product.ProductNumber, lookup._.ProductNumber[i]);
    }
    return true;
}
